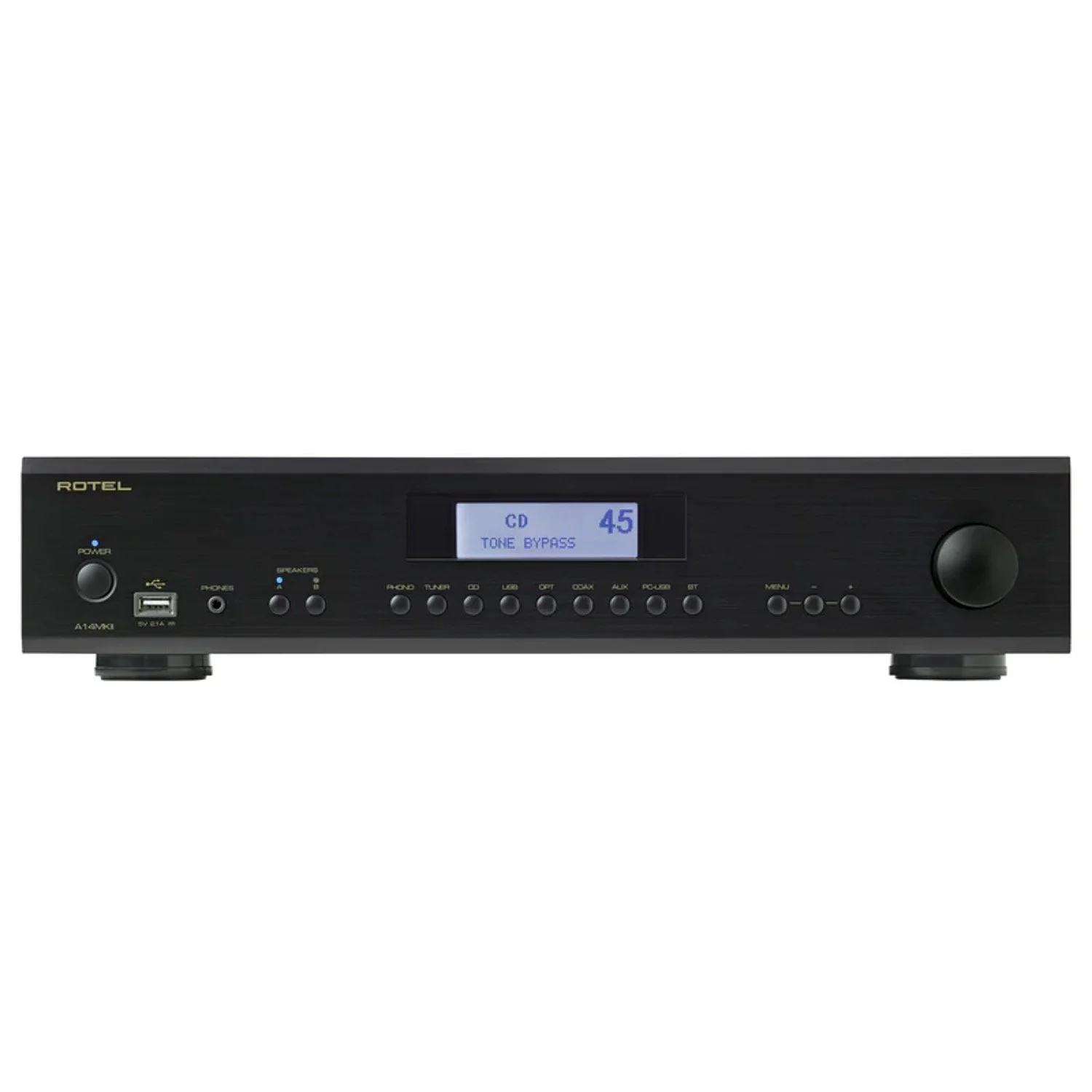

Rotel A14MKII Integrated Amplifier
The Rotel A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.
2 x 80 Watts of robust
Class AB power, 8 OhmsMoving Magnet Phono input for turntable connection turntable
Wireless aptX™ and AAC Bluetooth
Certified Roon Tested
Supports MQA and MQA Studio
The Rotel A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.
2 x 80 Watts of robust
Class AB power, 8 OhmsMoving Magnet Phono input for turntable connection turntable
Wireless aptX™ and AAC Bluetooth
Certified Roon Tested
Supports MQA and MQA Studio
The Rotel A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.
2 x 80 Watts of robust
Class AB power, 8 OhmsMoving Magnet Phono input for turntable connection turntable
Wireless aptX™ and AAC Bluetooth
Certified Roon Tested
Supports MQA and MQA Studio
Maximum Power Output
150W/Ch (4Ω)
Continuous Power Output
80W/Ch (8Ω)
Total Harmonic Distortion
(THD)
<0.018%
Frequency Response
Line Level Inputs:
10Hz - 100kHz, 0±0.5dB
Digital Inputs:
10Hz - 90kHz, 0±2.0dB, Max
Phono Input:
20Hz - 20kHz, 0±0.5dB
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB
Damping Factor
220
Input Sensitivity
Line Level Inputs: 230mV
Digital Inputs: 0dBfs
Phono Input (MM): 3.4mV
Input Impedance
Line Level Inputs: 24kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Dimensions (W × H × D)
430 × 93 × 345mm
17" × 3.6" × 13.5"
Front Panel Height
80mm (3.15")
Power Requirements
230V, 50Hz
Power Consumption
280W
Standby Power Consumption
<0.5W
Net Weight
8.94kg (19.71lbs.)
BTU Rating (4Ω, 1/8th power)
632 BTU/h
Intermodulation Distortion
(60Hz:7kHz, 4:1)
<0.03%
Input Overload
Line Level Inputs: 4V
Phono Input: 50mV
Preout Level
1.2V
Output Impedance
470Ω
Tone Controls
±10dB at 100Hz / 10kHz
Coax/Optical Digital Input Signals
SPDIF LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
