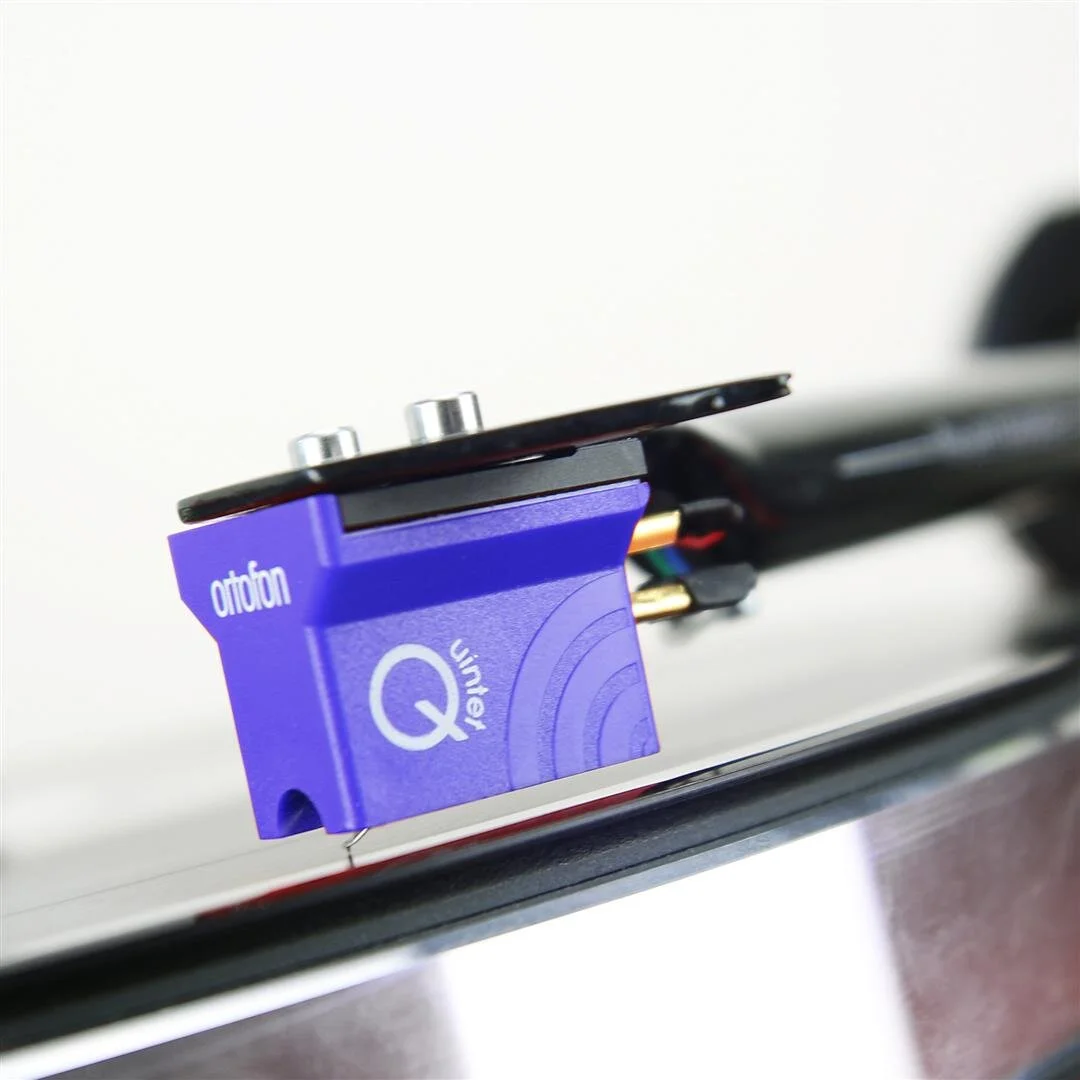

Ortofon Quintet Blue MC Cartridge
The Ortofon Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
Light weight and durable cartridge body made from a special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material
Neodymium magnets are implemented to achieve an optimal output
Delivers more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic
Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers
Supplied with 2 screws (M2.5 x 5)
Nude Elliptical stylus profile
The Ortofon Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
Light weight and durable cartridge body made from a special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material
Neodymium magnets are implemented to achieve an optimal output
Delivers more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic
Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers
Supplied with 2 screws (M2.5 x 5)
Nude Elliptical stylus profile
The Ortofon Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
Light weight and durable cartridge body made from a special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material
Neodymium magnets are implemented to achieve an optimal output
Delivers more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic
Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers
Supplied with 2 screws (M2.5 x 5)
Nude Elliptical stylus profile
OUTPUT VOLTAGE (AT 1KHZ, 5CM/SEC)
0.5mV
CHANNEL BALANCE AT 1KHZ
<1.5dB
CHANNEL SEPARATION AT 1KHZ
>21dB
CHANNEL SEPARATION AT 15KHZ
>14dB
FREQUENCY RANGE (AT -3DB)
20 Hz - 25 kHz
FREQUENCY RESPONSE 20HZ - 20KHZ
± 2.5dB
TRACKING ABILITY AT 315HZ
70μm
COMPLIANCE, DYNAMIC, LATERAL
15μm / mN
STYLUS TYPE
Nude Elliptical
STYLUS TIP RADIUS R / R
8 / 18μm
TRACKING FORCE RANGE
2.1 - 2.5g (21 - 25mN)
RECOMMENDED TRACKING FORCE
2.3g (23mN)
TRACKING ANGLE
20º
INTERNAL IMPEDANCE / DC RESISTANCE
7Ω
RECOMMENDED LOAD IMPEDANCE
>20Ω
CARTRIDGE BODY MATERIAL
ABS/Alu.
CARTRIDGE COLOUR
Blue
CARTRIDGE WEIGHT
9g
