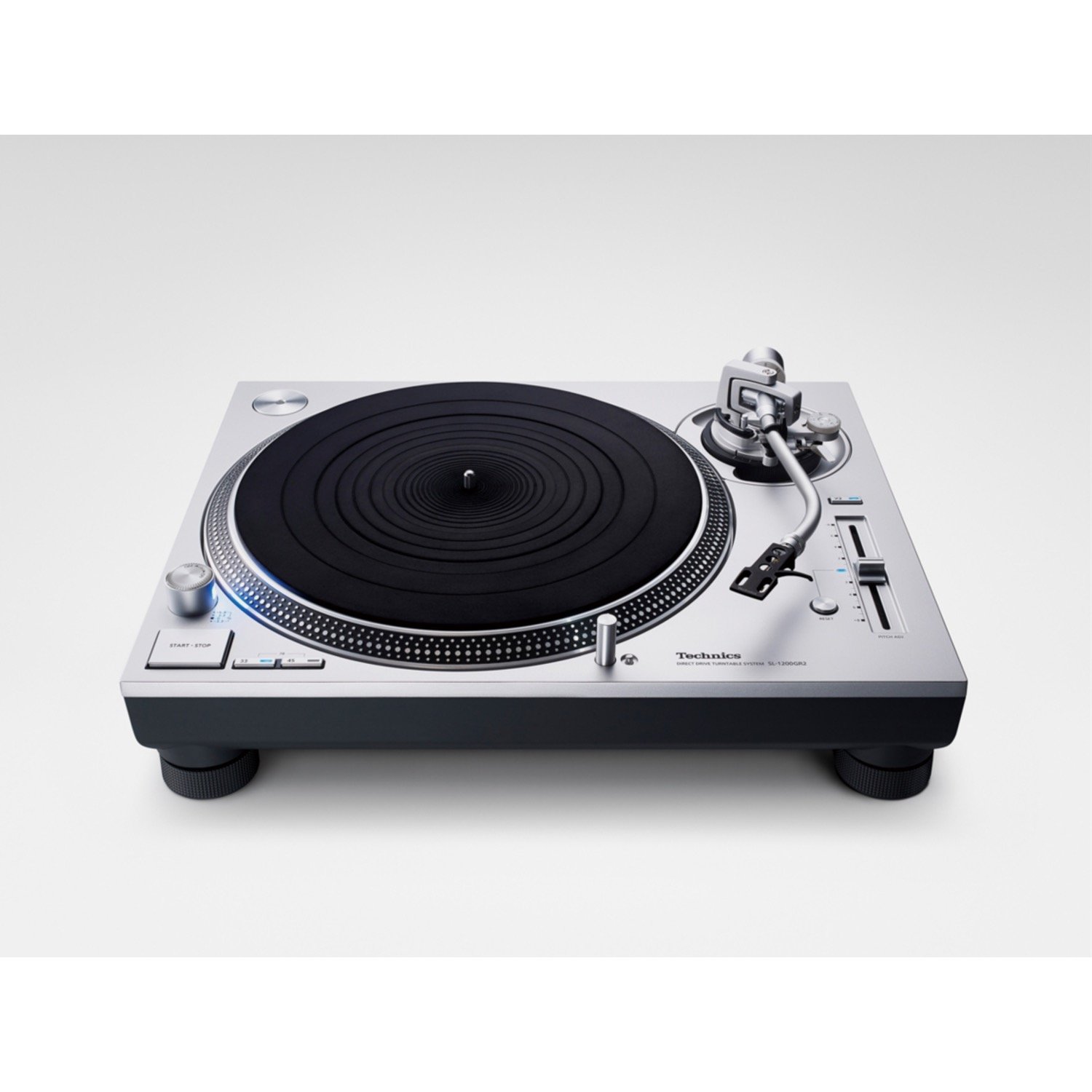

Technics SL-1200GR2 Direct Drive Turntable

Coreless Direct Drive Motor Achieving Stable Rotation

In 1970, Technics revolutionised the turntable industry with the world's first direct drive system. Unlike traditional belt drive setups, Technics direct drive system minimises motor-induced vibrations, ensuring an exceptional signal-to-noise ratio and long-term reliability without the need for frequent part replacements. However, earlier models faced "cogging" issues due to iron cores, affecting rotation regularity. The Technics SL-1210GR2 features an iron coreless single-rotor/single-stator motor, eliminating cogging and maximising rotational smoothness. Experience superior performance and extended durability with Technics' cutting-edge technology.

New Motor-Drive System, ΔΣ-Drive (Delta Sigma Drive)

Unlock a new realm of audio precision with the ΔΣ-Drive – a state-of-the-art system harnessing Technics’ expertise in PWM signal processing. In addition to reducing harmonics, the new drive suppresses vibrations from the motor for smoother, more accurate rotation, ensuring a rich reproduction of the music.

Low-Noise Switching Circuit

By incorporating a high-speed switching power supply, Technics guarantee a consistently stable power capacity with minimal ripple and humming. This smart utilisation of a switching power supply in a turntable design not only eradicates the necessity for a large transformer but also eliminates the need for additional measures to counteract mechanical vibrations. Moreover, operating at a switching frequency exceeding 100 kHz ensures that any potential noise is confined, preserving the full bandwidth of the music playback for an uninterrupted and superior listening experience.

Tonearm Achieving High Initial-Motion Sensitivity

The tonearm, a crucial component for precise reading, tracks the record's rotation. Inherited from Technics, it employs a lightweight, rigid aluminium pipe in the traditional static-balance universal S-shape. Featuring a gimbal suspension and high-precision bearing, it achieves initial-motion sensitivity of 5 mg or less through manual assembly by skilled Japanese artisans. This meticulous construction ensures accurate tracing of record grooves. Plus, it includes an auxiliary weight, providing flexibility for a variety of pickup cartridges.

Two-layer Rigid Platter with Vibration Damping Characteristics

Technics platter's advanced design ensures superior sound quality by combining a two-layer construction with strategic deadening rubber. This effectively eliminates unwanted resonance, providing a clear and immersive audio experience. Through simulation optimisation, Technics enhanced the aluminium die-cast portion to increase inertial mass and minimise vibration, resulting in improved overall performance. The addition of strengthening ribs at the back further enhances rigidity.

Current Injection Active Noise Cancelling

Technics innovative system teams up a powerful noise detection device with a precision error amplifier. It doesn't just detect any lingering noise in the power supply – it goes a step further by applying an inverse phase current to kick out those disruptive noise components. The result? A power supply that surpasses the effectiveness of traditional regulators, ensuring an ideal and pristine environment for your audio, free from low-frequency noise.

High-Damping Silicon Insulators

For the insulators supporting the body, the SL-1210GR2 uses special silicon rubber that ensures high vibration damping characteristics and long-term reliability.

Two-layered Cabinet Construction

The SL-1210GR2 ensures high rigidity by using a body with a two-layered construction that solidly unifies the BMC and the aluminium die-cast chassis.

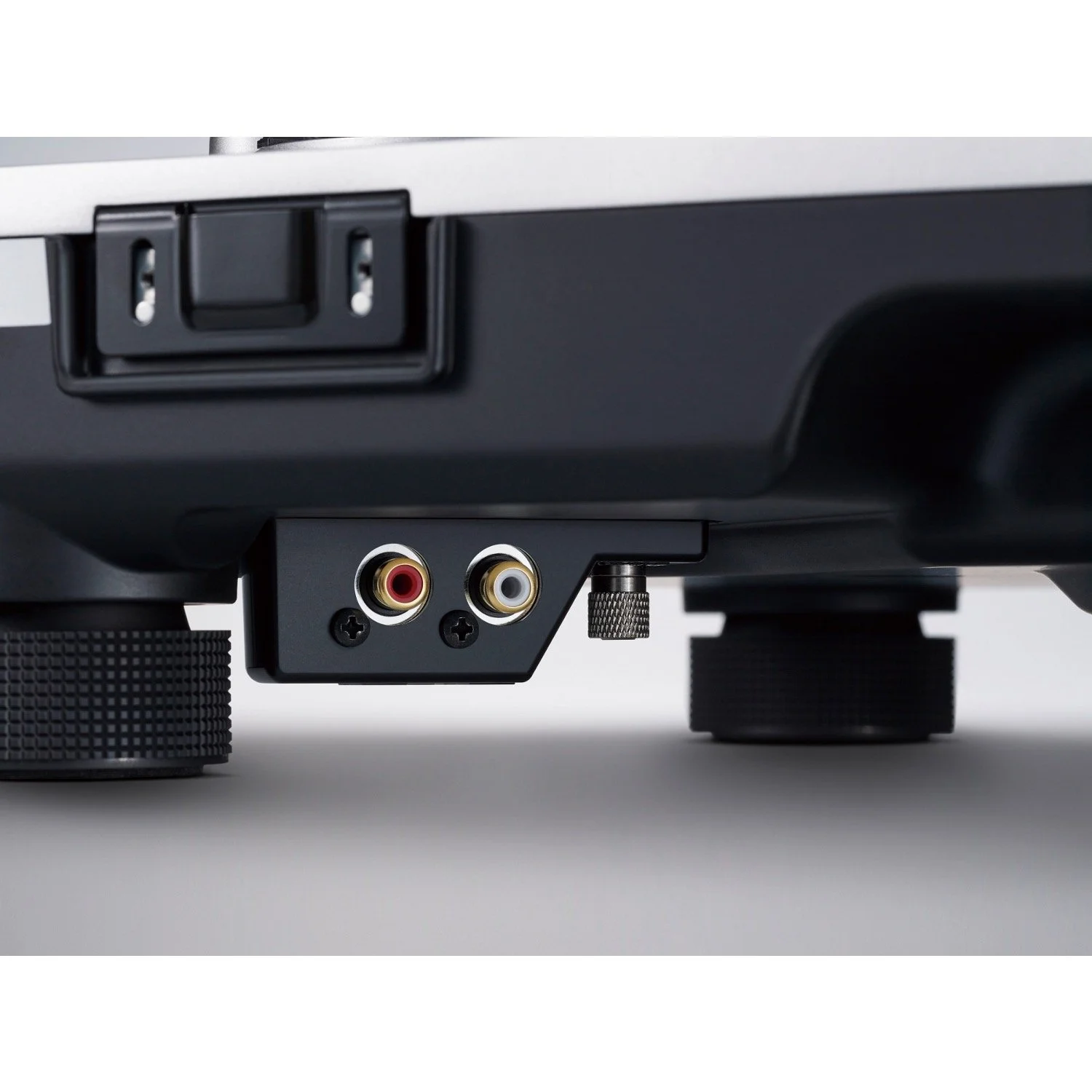

High-Quality Terminals

The turntable uses gold-plated phono terminals for detachable cables, while metal shielding construction inside the case reduces the effects of external noise.

Drive Method

Direct Drive

Motor

Brushless DC motor

Turntable Speeds

33-1/3, 45 and 78 rpm

Pitch Adjustment Range

±8% and ±16%

Starting Torque

2.2 kg･cm

Build-up Characteristics

0.7 s. from standstill to 33- 1/3 rpm

Braking system

Electronic brake

Wow and Flutter

0.025%　W.R.M.S.

Turntable Platter

Aluminum diecast

Diameter

332mm

Weight

Approx. 2.5kg (Including a rubber sheet)

Type

Static Balance

Effective Length

230mm

Overhang

15mm

Tracking Error Angle

Within 2° 32'　(at the outer groove of 30cm(12") record)

Within 0° 32'　(at the inner groove of 30cm(12") record)

Offset Angle

22°

Arm Height Adjustment Range

0 - 6mm

Stylus Pressure Adjustment Range

0 - 4g (Direct Reading)

Headshell weight

Approx. 7.6g

Applicable Cartridge Weight Range

(without auxiliary weight)
5.6 - 12.0g
3.1 - 9.5g (using cartridge spacer)
14.3 - 20.7g (including head shell)
(with auxiliary weight)
10.0 - 16.4g
7.5 - 13.9g (using cartridge spacer)
18.7 - 25.1g (including head shell)

Cartridge Mounting Dimension

12.7 mm (1/2") interval

Head Shell Terminal Lug

1.2mmφ 4-pin terminal lug

Audio Output

PHONO (Pin Jack) x 1
EARTH TERMINAL x 1

Power Supply

AC220-240 V, 50/60 Hz

Power Consumption

11 W (ON)
0.3 W (OFF)

Dimensions (W x H x D)

453 x 173 x 372 mm

Weight

Approx. 11.5kg

Operating temperature range

0℃ to +40℃

Operating humidity range

35% to 80% RH (no condensation)

Accessories

Turntable, Turntable sheet, Dust cover,
EP record adaptor, Balance weight,
Auxiliary weight, Cartridge spacer
Head shell, Overhang gauge,
Screw set for cartridge, PHONO cable,
PHONO earth lead, AC power supply cord,
Owner's Manual
